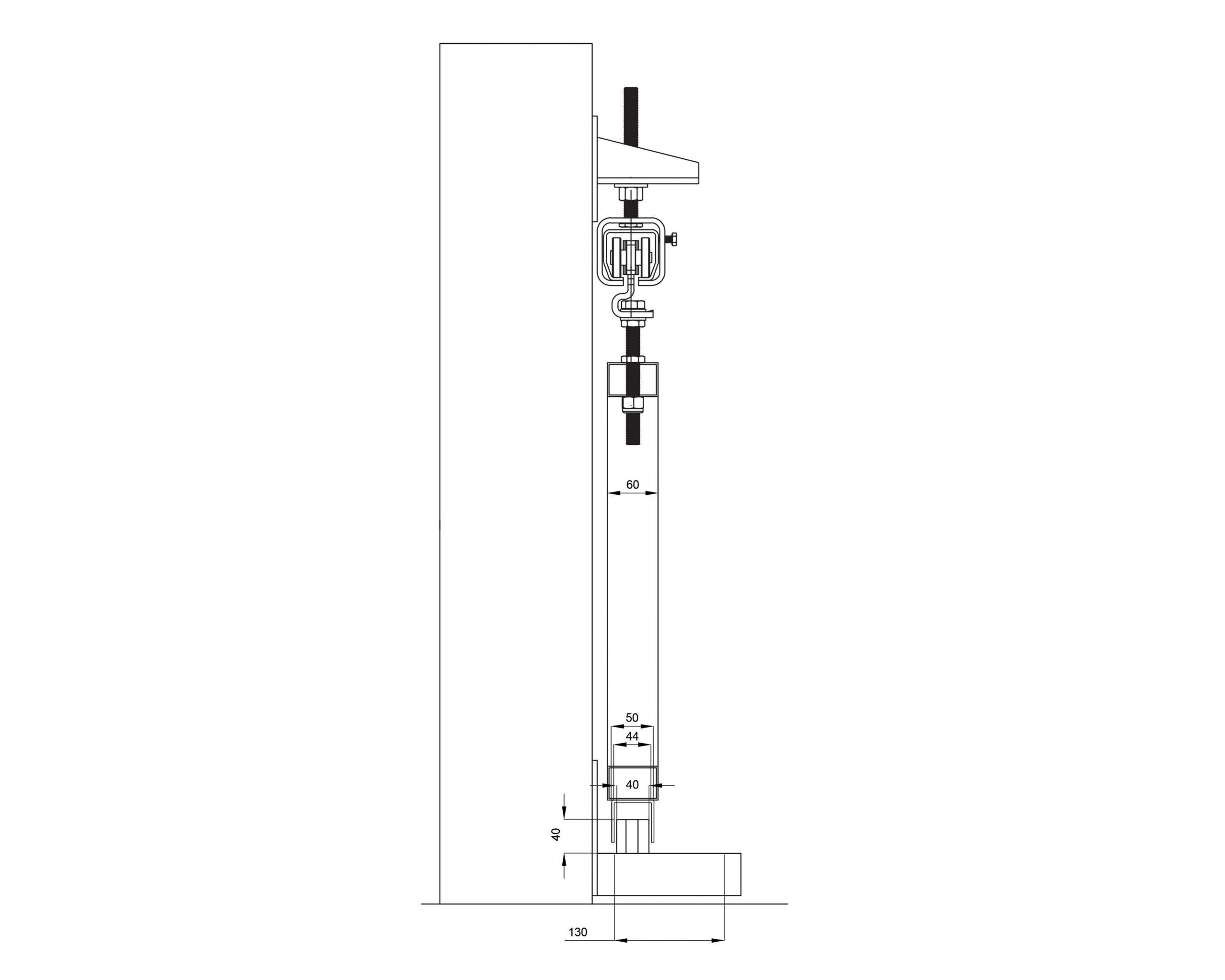

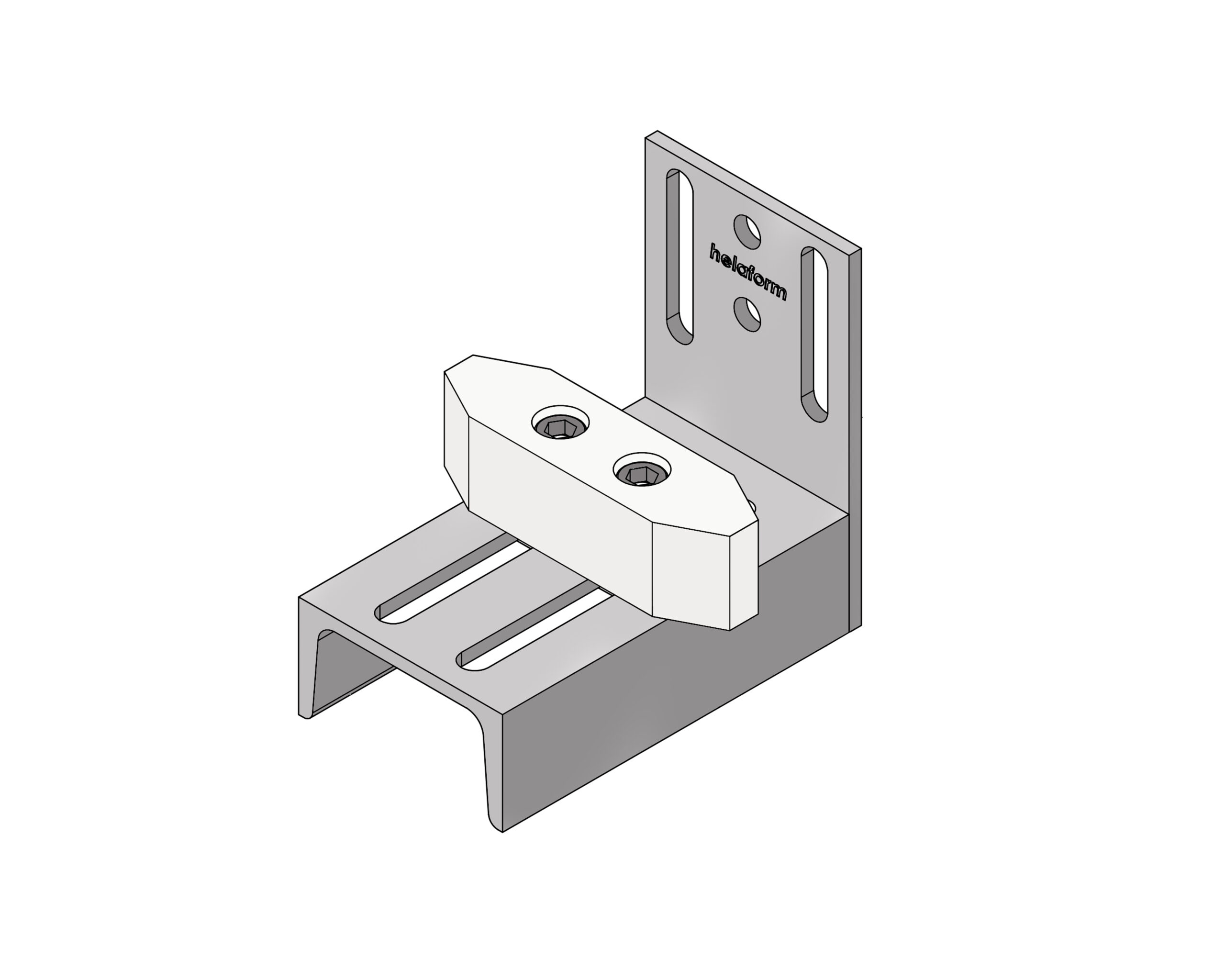

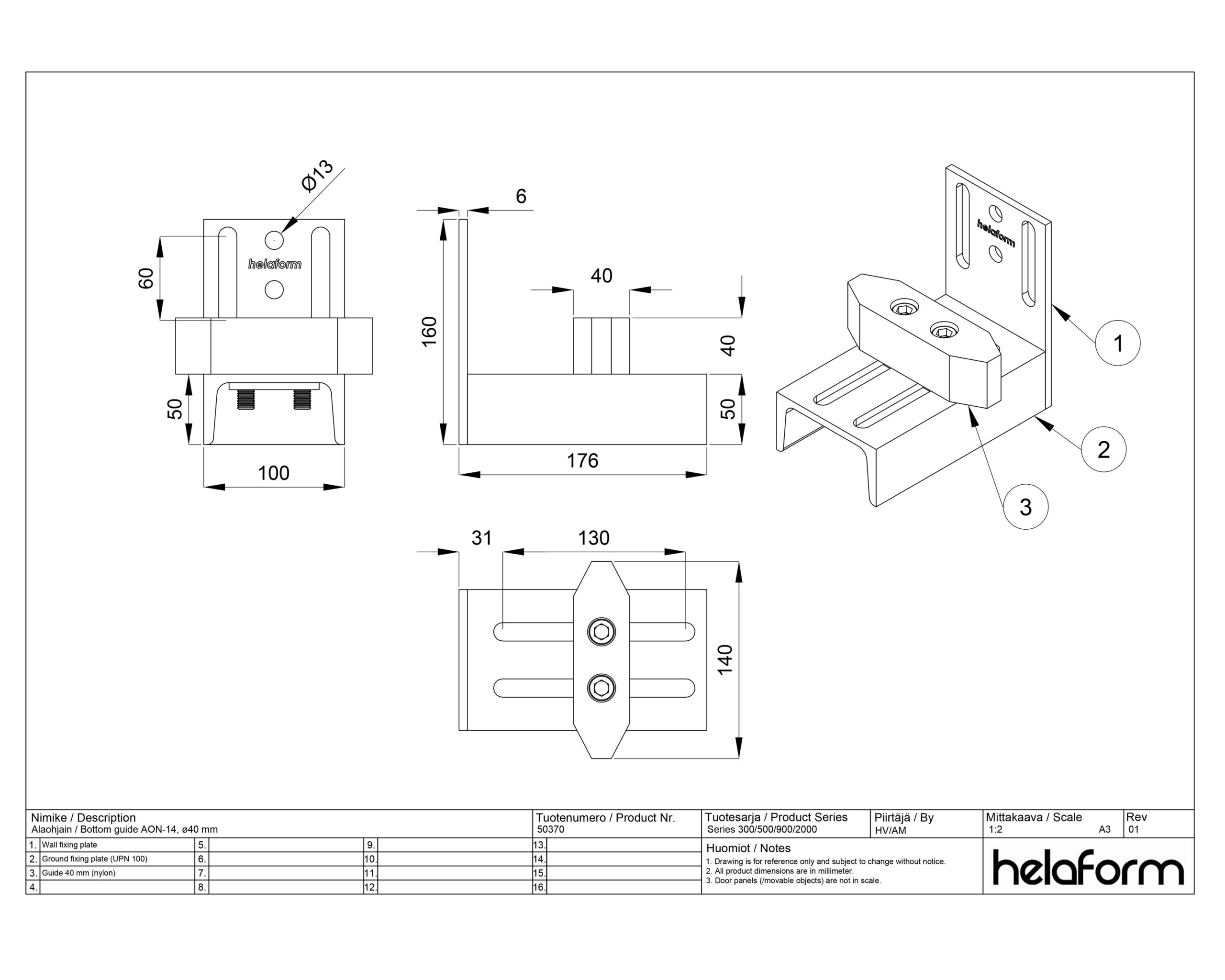

Bottom guide AON-14, ø 40 mm

Wall-mounted bottom guide for a single sliding door. Suitable for sliding door systems of series 150, 300/500, 900, and 2000.

The thickness of the bottom guide plate and the U-shaped profile make the structure extremely sturdy. Thanks to the oval holes designed for mounting, the height can be adjusted precisely so that the bottom guide aligns perfectly with the sliding door’s bottom guide track. The guide itself (nylon bottom guide), mounted on the plate, can also be adjusted laterally to ensure it runs exactly in the center of the bottom guide track.

The bottom guide is essential for the proper operation and safety of the sliding door system. It also prevents the door from swaying.
