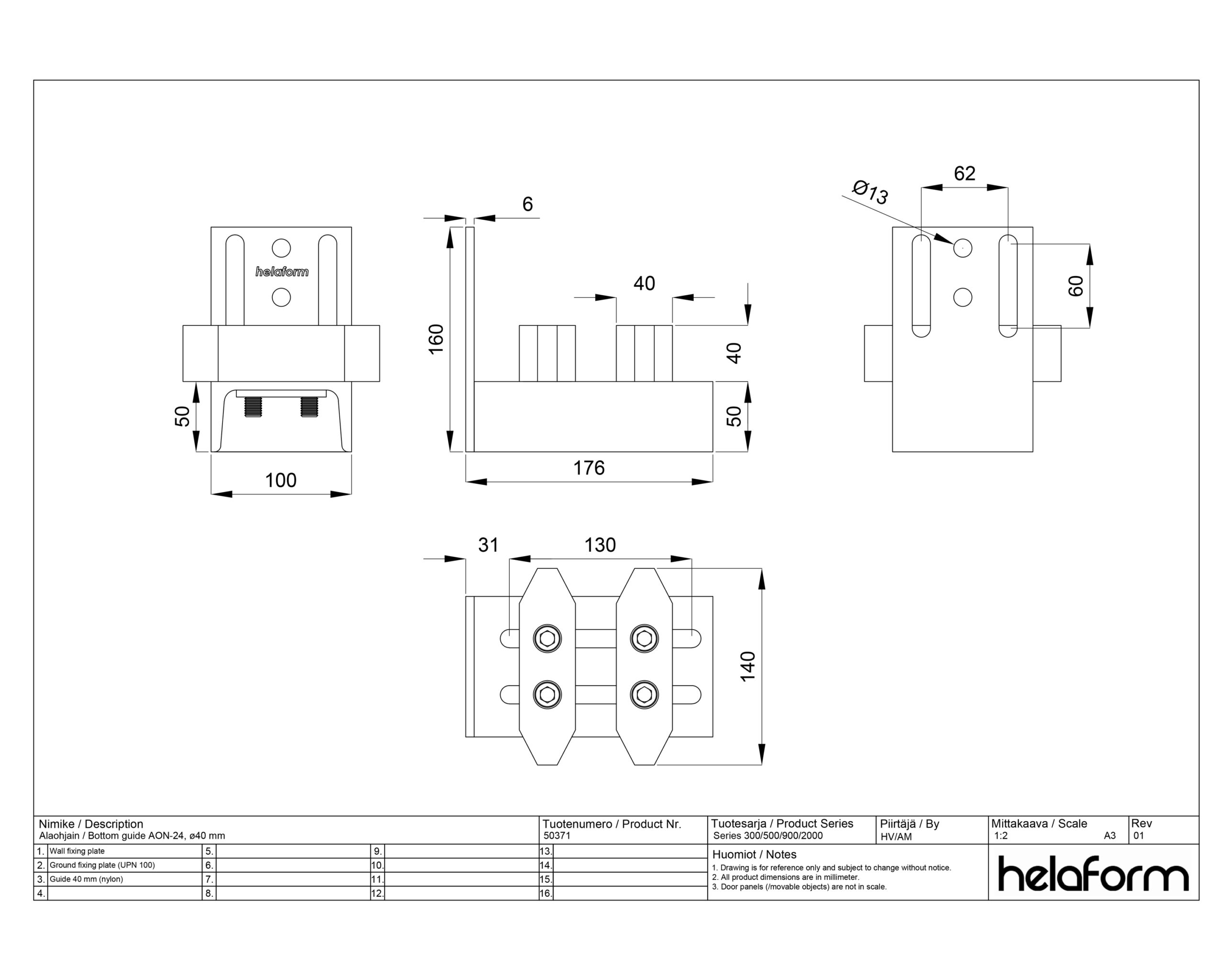

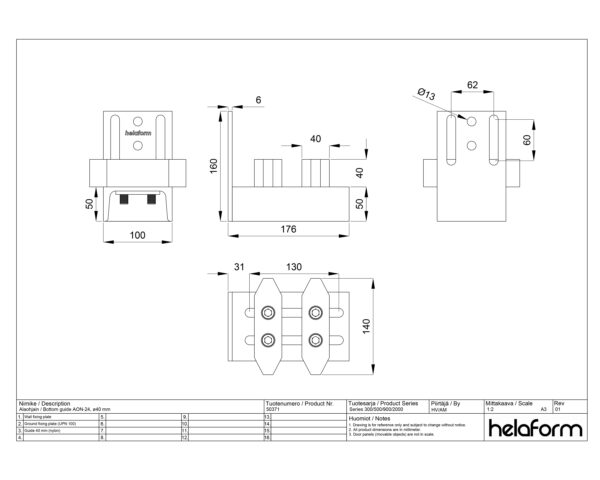

Bottom guide AON-24, ø 40 mm

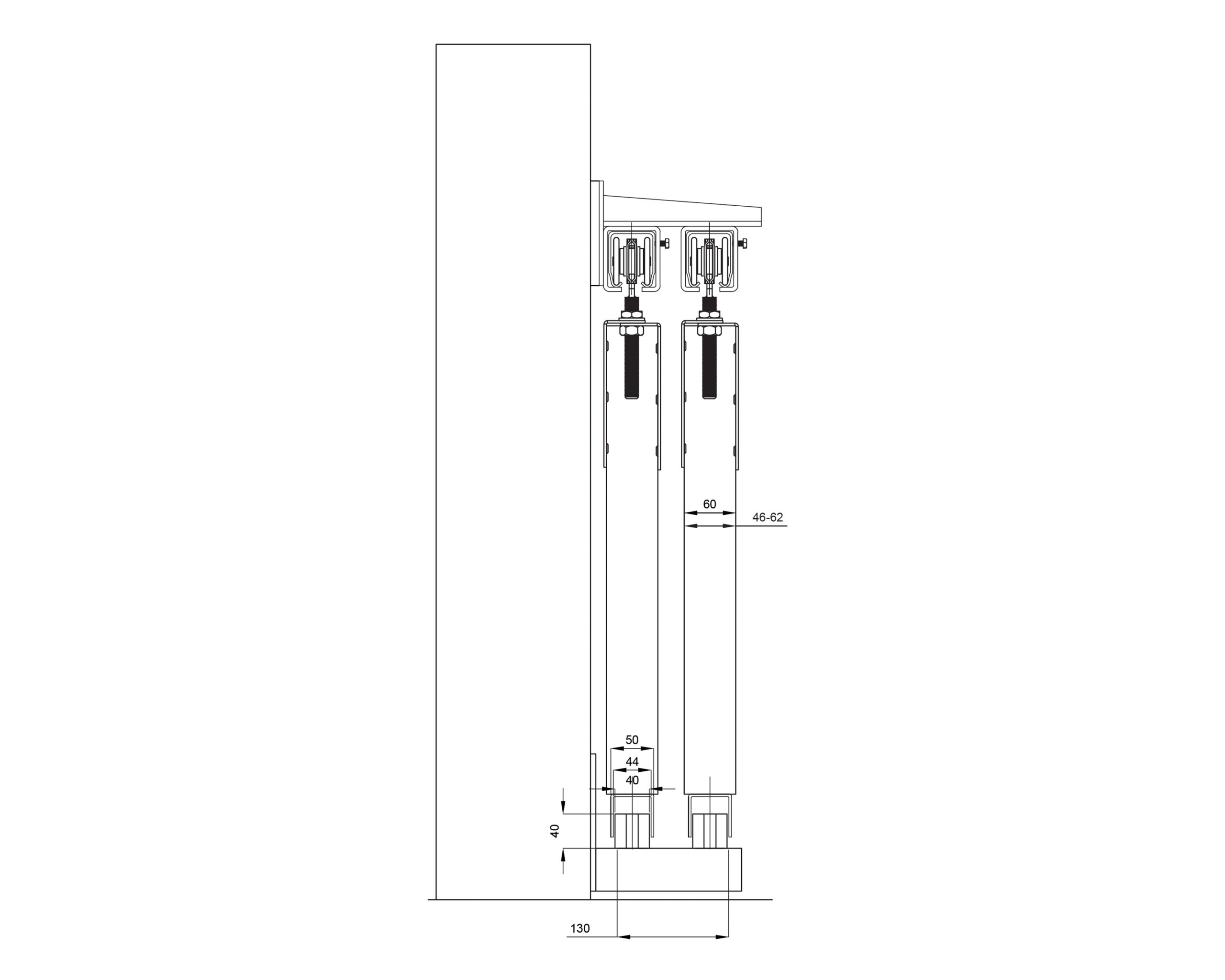

Wall-mounted bottom guide for two parallel sliding doors. Suitable for sliding door systems of series 150, 300/500, 900, and 2000.

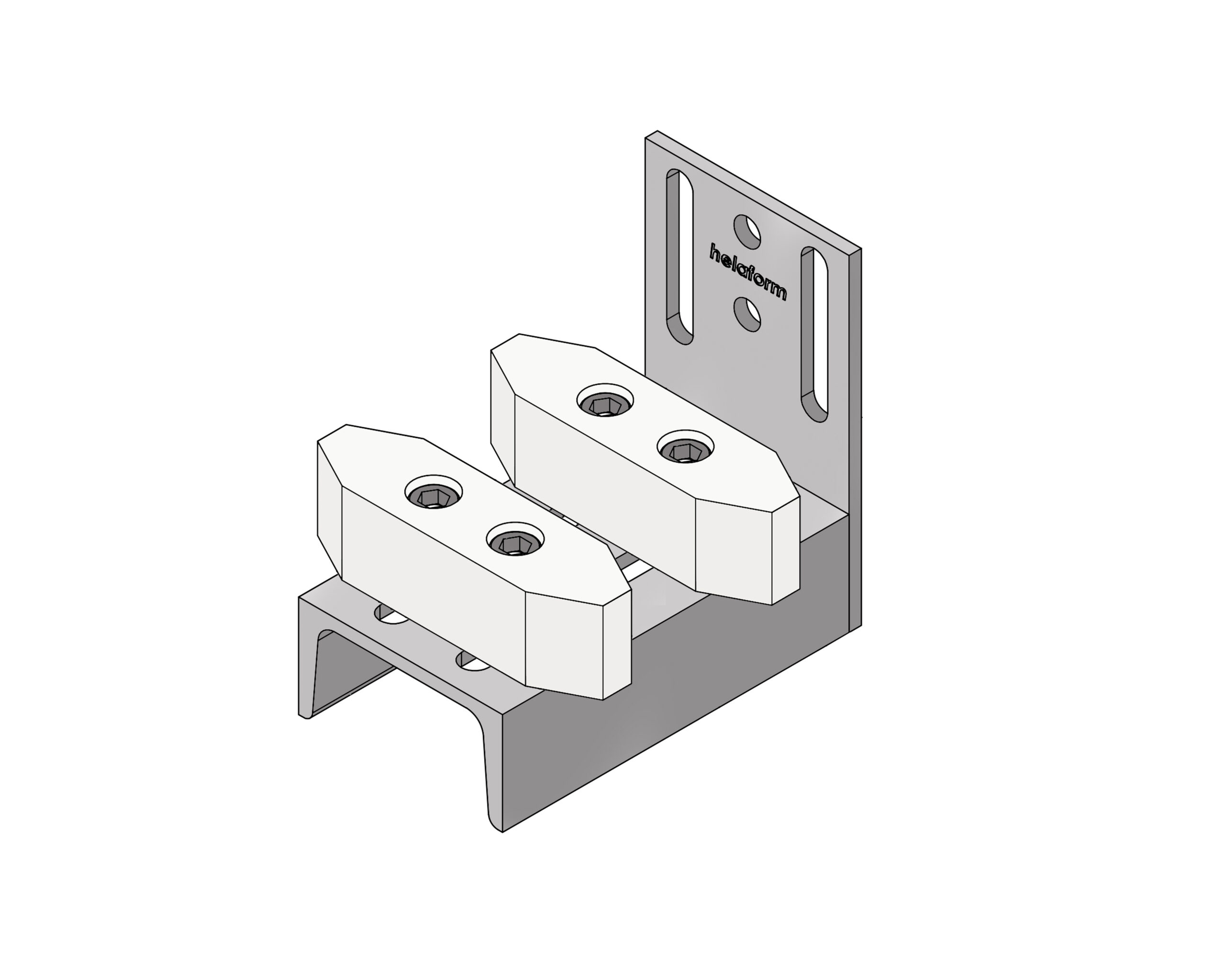

The thickness of the bottom guide plate and its U-shaped profile make the structure exceptionally sturdy. The oval mounting holes allow for precise height adjustment, ensuring the bottom guide aligns perfectly with the sliding door’s bottom guide track. Additionally, the guide itself (nylon bottom guide) mounted on the plate can be adjusted laterally to ensure it runs exactly in the center of the bottom guide track.

The bottom guide is essential for the proper function and safety of the sliding door system. It also prevents the door from swaying.
